Data Object Reference

You use Data Object References to model the flow of data from one Activity or Event to another.

In a diagram, they’re used to reference a Data Object you create in Process Attributes. You can have several Data Object References referencing the same Data Object within the same process.

You can use a Data Object Reference as a source or target for a Data Association.

a Data Object symbol

Data Object attributes

Fill in these fields in the Attributes tab:

  • Data Object

    Define the Data Object referenced by the Data Object Reference.

    Select an existing Data Object or create a new Data Object:

    To select an existing Data Object:

    • Click to open the dropdown list and select a Data Object.

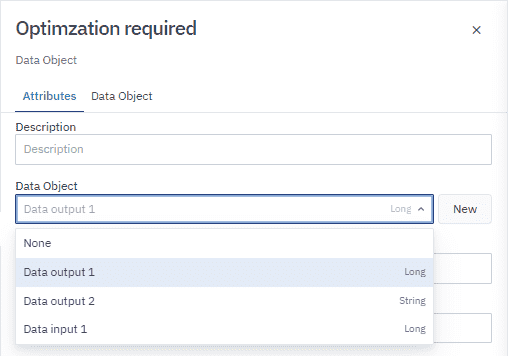

    selecting a Data Object

    To create a new Data Object:

    1. Click New.

    2. In the panel that opens, select the process where you want to create the Data Object and provide the name of the Data Object, a description (optional) and indicate the data type (Item Definition) and default value.

    3. Click Create and select.

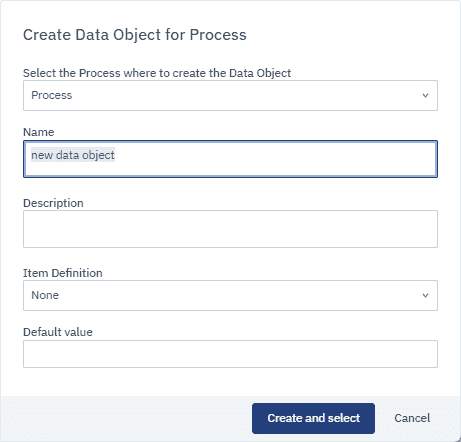

    creating a new Data Object

  • Data State

    You can define the different states of a Data Object Reference at different points of a process — for example, “in progress” or “completed”. How you define the state is your choice.

    Unlike a description, the state is visible in the diagram. You can see it in the label of the Data Object Reference.

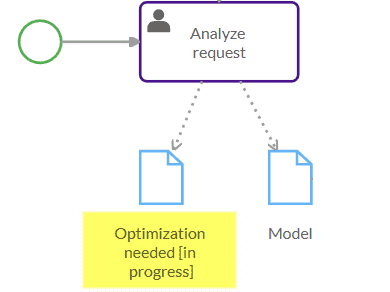

    defining the state of a Data Object



If you haven’t already defined the Data Object Definition at a global process level, you can define it in the Data Object tab:

  • Data Object

    Define the Data Object referenced by the Data Object Reference.

    You find Data Object IDs in the Data Object tab.

    • To add a Data Object Reference, click Add.

    • To remove a Data Object Reference, select the Data Object Reference from the list then click Remove.

    • To complete or edit a Data Object Reference, select the Data Object Reference from the list and fill in these fields:

      Fill in these fields:

      Field Description
      Name The name of the Data Object Reference.
      Description A description of the Data Object Reference.
      Item Definition The data type of the Data Object Reference.
      Default value The default value of the Data Object Reference.
